$295.06 Regular price

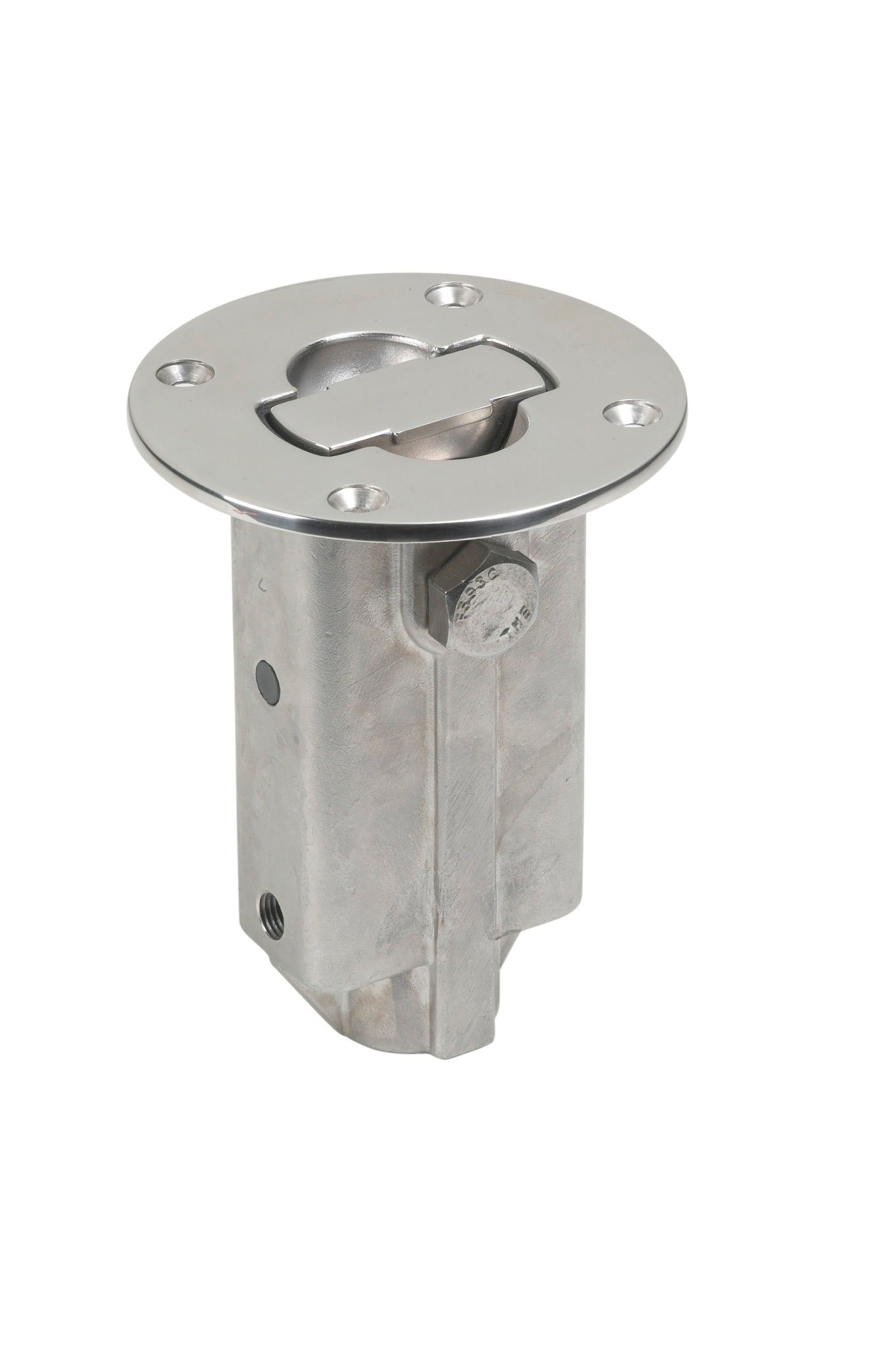

Round Lifting Eye



FEATURES

  • All stainless steel parts; eye and base are 316, lifting hardware is 304.
  • The sling is a solid casting for increased strength.
  • Parts may be purchased separately.
  • 2 3/8" diameter hole required.
  • Fastens to deck with four #10 screws.


INDEPENDENT LAB TEST RESULTS

The maximum working load is 4,000 pounds in the direction of the axis of the threaded rod shank only.

TEST RESULTS FOR SMALL LIFTING EYE

DRAWING OF SMALL LIFTING EYE
DRAWING OF LARGE LIFTING EYE

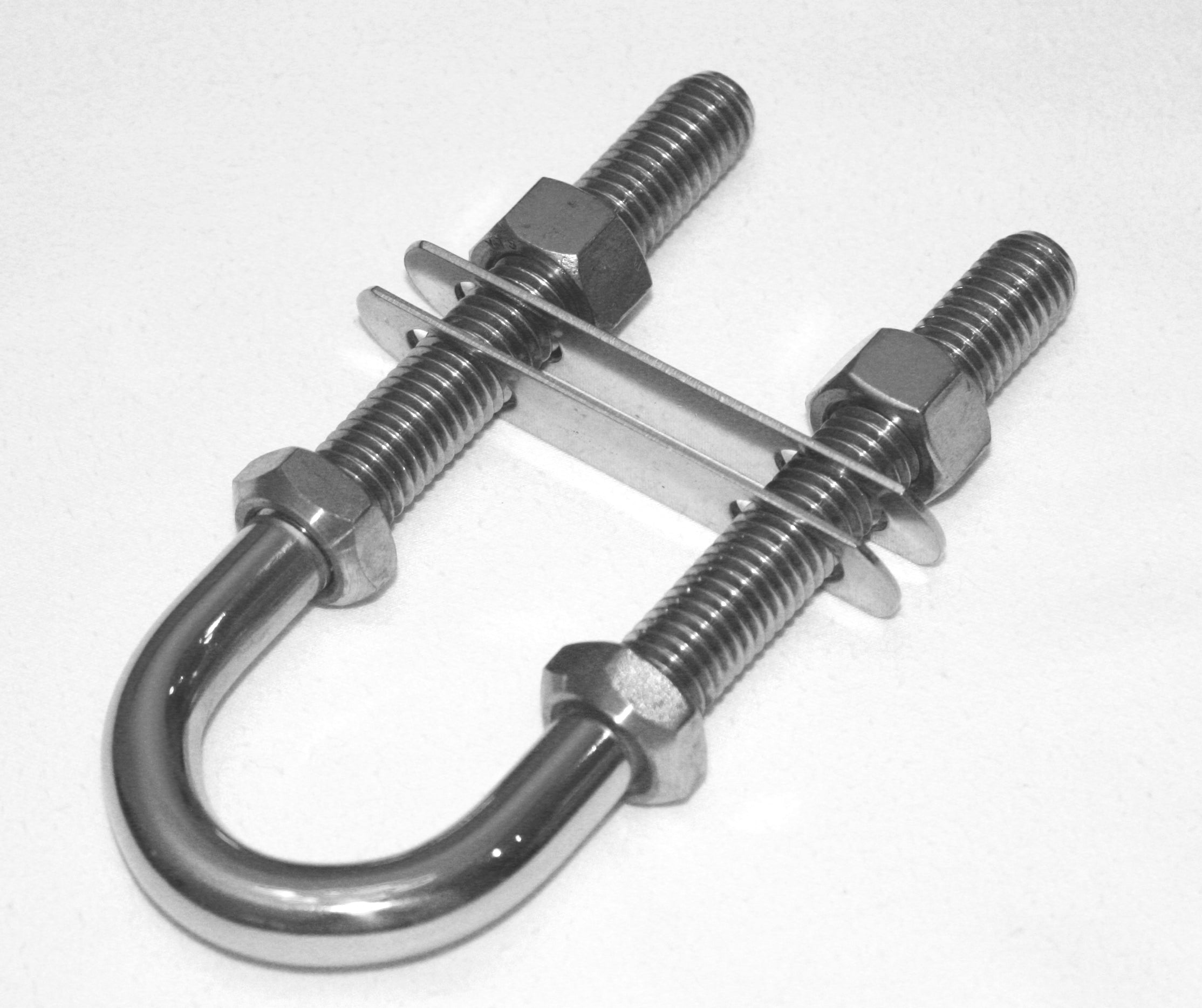

DRAWING OF BOW EYE

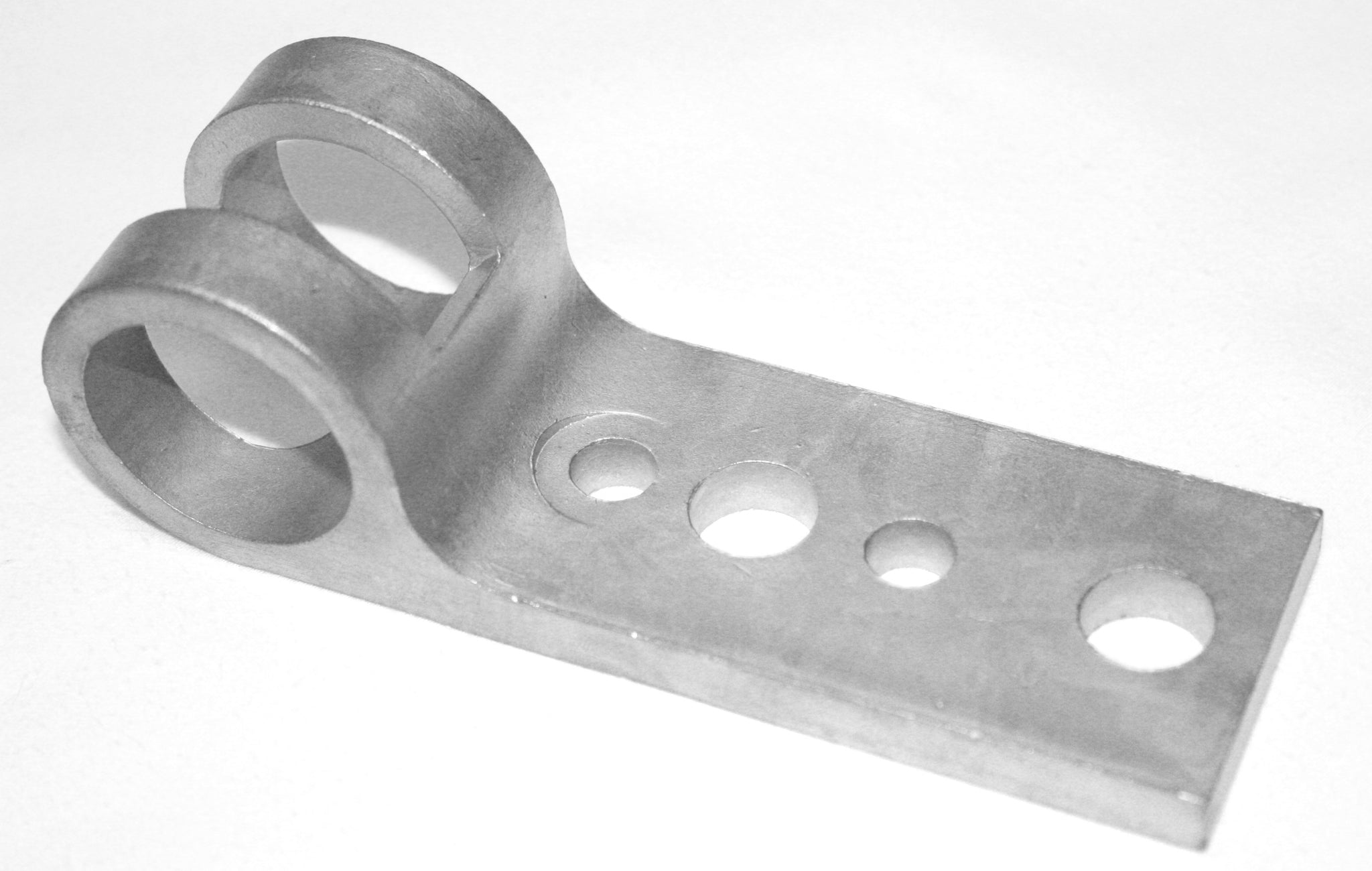

DRAWING OF SMALL SLING

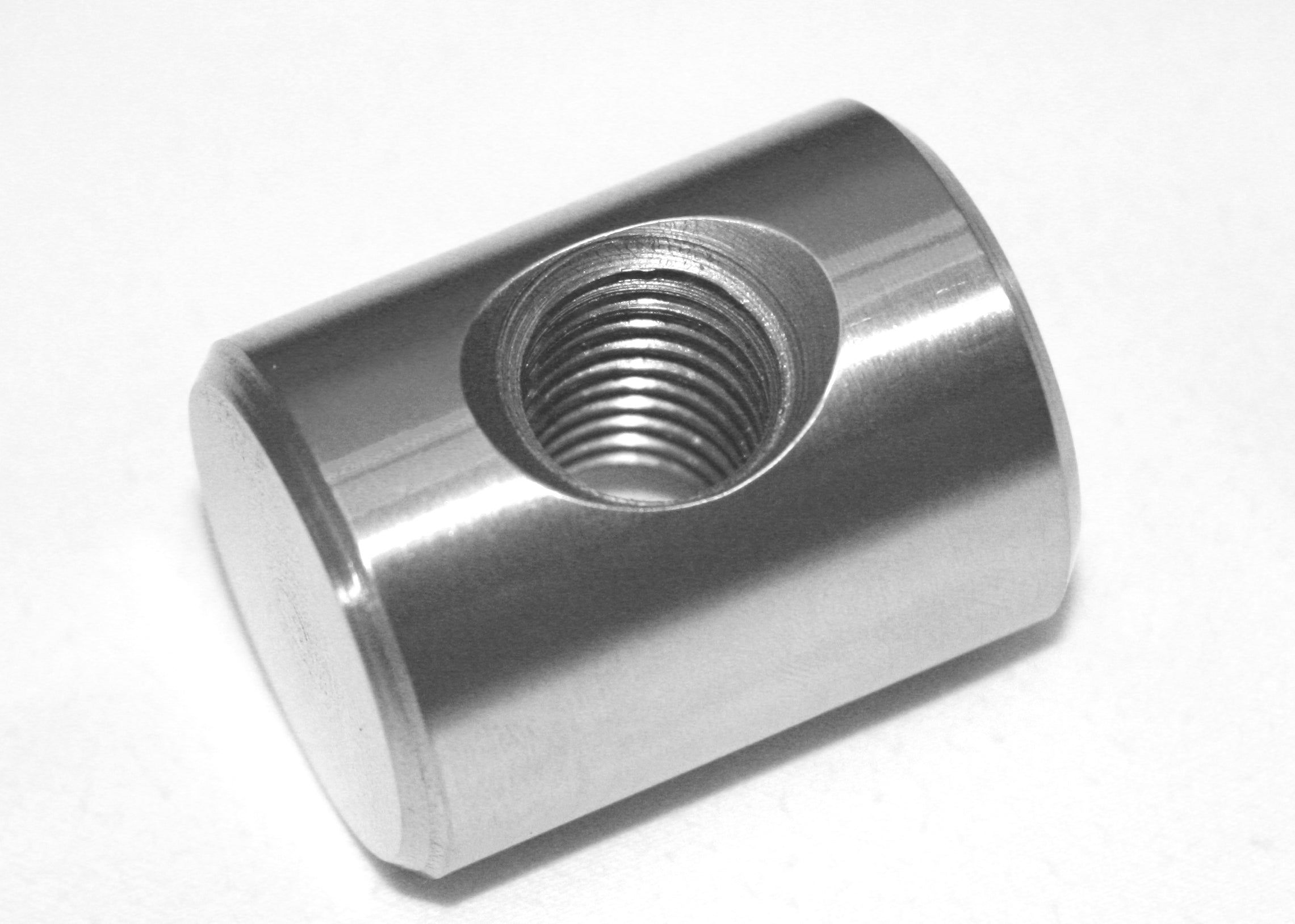

DRAWING OF SMALL CROSS BAR


DRAWING OF LARGE SLING
DRAWING OF LARGE CROSS BAR
