FEATURES

• Part #405

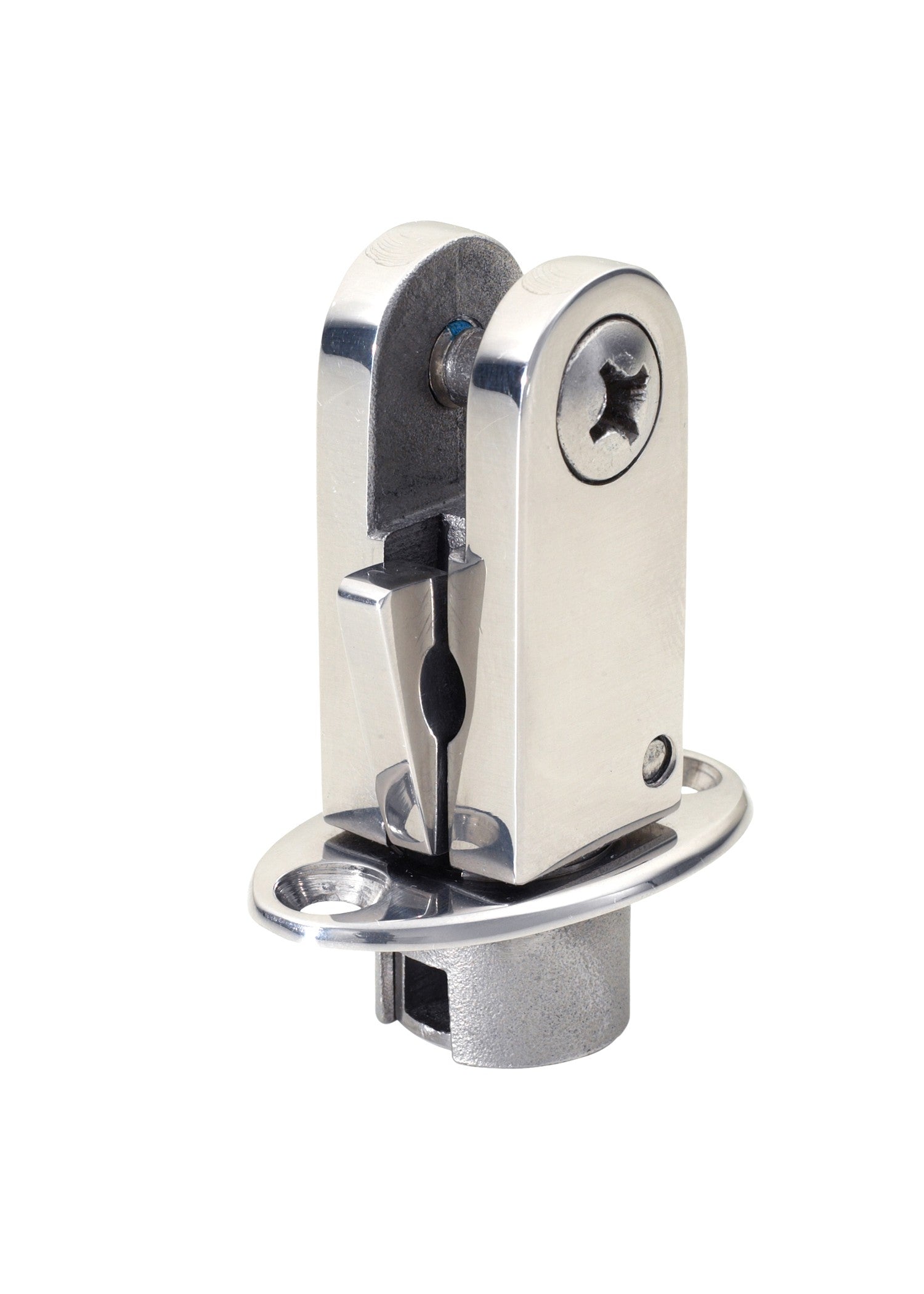

• Flush mounted Quick Release 316 stainless steel hinge.
• Designed to be installed on 1 1/4" square tubing, used primarily by pontoon builders.
• Can be installed in other areas.
• Easily remove or install top without having to keep track of screws and pins.
• The hinge snaps into base and stays attached to bimini when separated.
• Adapter can be inserted four different ways, 90° apart.

INSTALLATION

• Requires drilling a 13/16" diameter hole.
• Fasten with two #10 screws.

DIMENSIONS

• 2.5" L x .97" W

DRAWING
