FEATURES

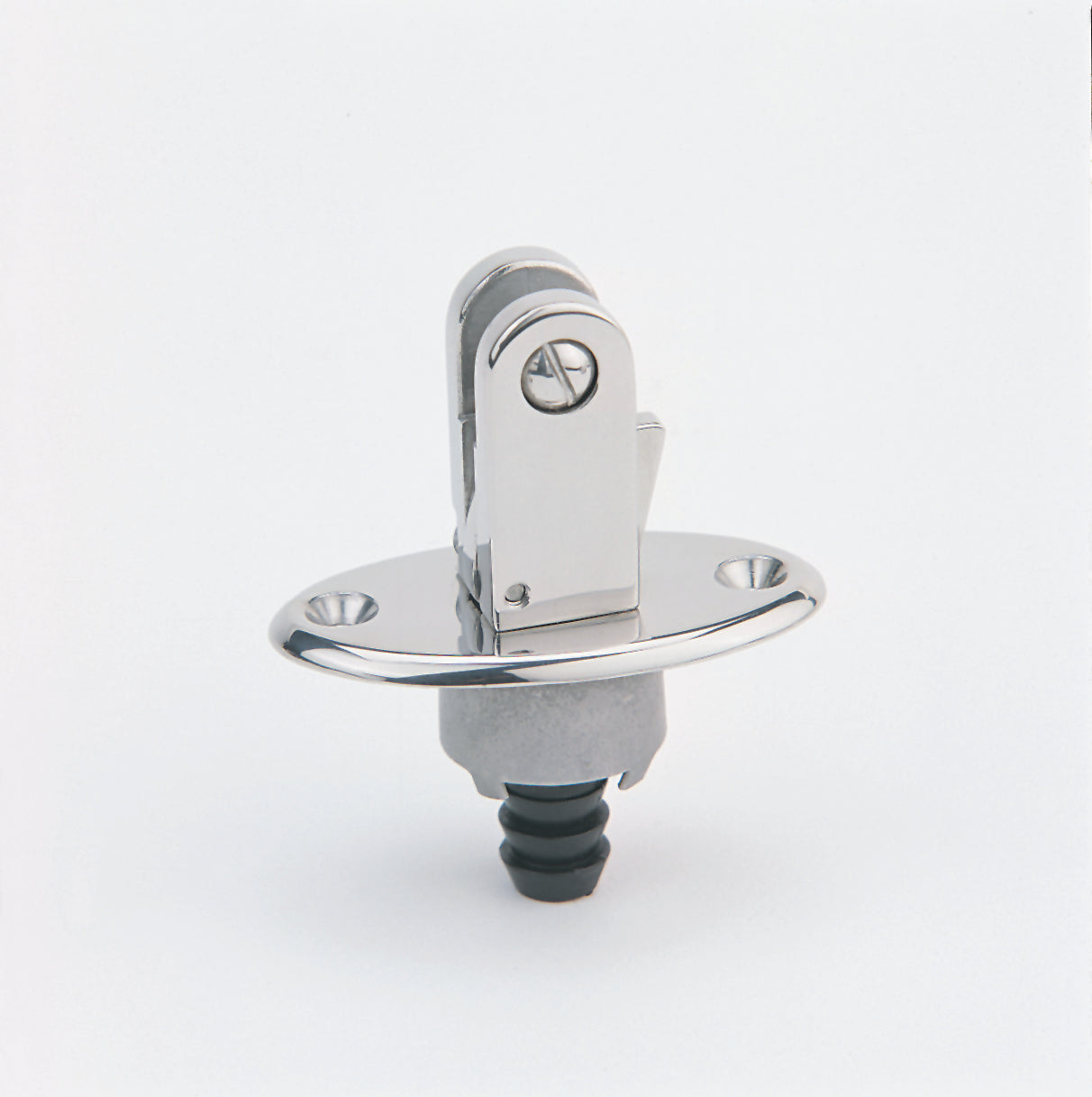

• Flush mounted Quick Release 316 stainless steel hinge.
• Easily remove or install top without having to keep track of screws and pins.
• The hinge snaps into base and stays attached to bimini when separated.
• Adapter can be inserted four different ways, 90° apart.

INSTALLATION

• Requires drilling a 1-1/8" diameter hole.
• If draining is required, remove the set screw on bottom of fitting.
• Fasten with two #8 counter-sunk screws.

DIMENSIONS

• 1.5" W x 2.75" L

DRAWING
